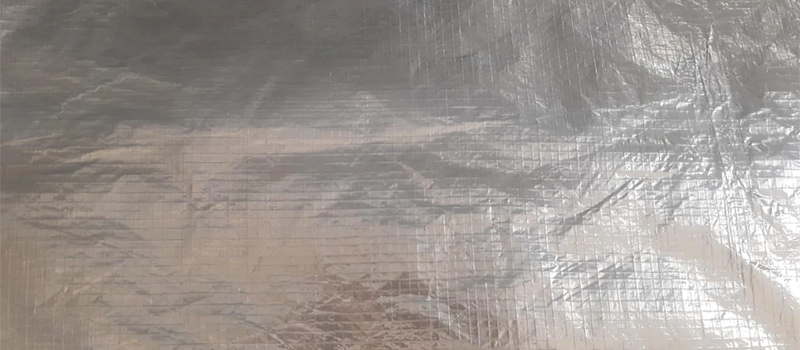

The laminate is engineered with an outer layer of aluminum foil featuring a reflective surface, designed to provide radiant heat resistance and enhanced durability. This foil is reinforced with a fiberglass scrim in a 5×5 mm square grid pattern, which imparts mechanical strength and dimensional stability to the structure. The layers are securely bonded using extrusion-grade polyethylene (PE), ensuring adhesion and integrity of the composite.
| Sr. No | Property | Test Method | Unit | Value |
| 1 | Grammage | ISO 536 | G/m2 | 95 (+/-5%) |
| 2 | Tensile Strength | ASTM D882 | N/25 mm | 220-260 |
| 3 | Water Vapor Transmission Rate (WVTR) | ASTM E96 | g/m2·24h | ≤ 1 |
| 4 | Temperature Resistance | Internal Method | °C | -40 °C to +120 °C |
| 5 | Reflectivity | ASTM C1371 | % | ≥ 95% |
| 6 | Peel Adhesion | ASTM D903 | N/25 mm | ≥ 13 |
SunPro® AFPE laminate is a high-performance facing material engineered for modern insulation systems. Its composite structure combines the reflective properties of aluminum foil, the reinforcement of fiberglass scrim, and the durability of polyethylene bonding. This synergy delivers excellent heat reflection, moisture resistance, and mechanical strength, making it a reliable choice for HVAC, building insulation, and industrial applications.
