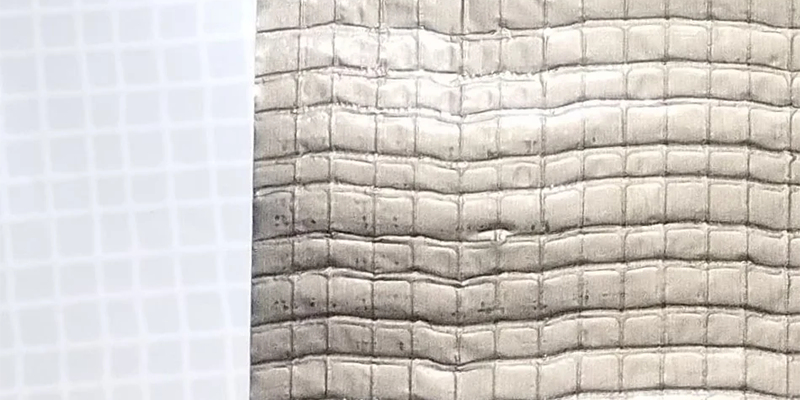

The laminate is designed with a high-tensile polyester (PET) film as the outer protective layer, providing strength, flexibility, and resistance to environmental stress. Beneath this, a aluminum foil with a reflective surface enhances thermal insulation and radiant heat resistance. For reinforcement, a fiberglass scrim arranged in a 5×5 mm square grid is incorporated, ensuring dimensional stability and mechanical durability. The layers are bonded together using extrusion-grade polyethylene (PE), which secures adhesion and structural integrity.
| Sr. No | Property | Test Method | Unit | Value |
| 1 | Grammage | ISO 536 | G/m2 | 80 (+/-5%) |
| 2 | Tensile Strength | ASTM D882 | N/25 mm | 250-290 |
| 3 | Water Vapor Transmission Rate (WVTR) | ASTM E96 | g/m²·24h | ≤ 1 |
| 4 | Temperature Resistance | Internal Method | °C | -40 °C to +120 °C |
| 5 | Reflectivity | ASTM C1371 | % | ≥ 95% |
| 6 | Peel Adhesion | ASTM D903 | N/25 mm | ≥ 15 |
SunPro® AFPE laminate is a high-performance facing material engineered for modern insulation systems. Its composite structure combines the reflective properties of aluminum foil, the reinforcement of fiberglass scrim, and the durability of polyethylene bonding. This synergy delivers excellent heat reflection, moisture resistance, and mechanical strength, making it a reliable choice for HVAC, building insulation, and industrial applications.
